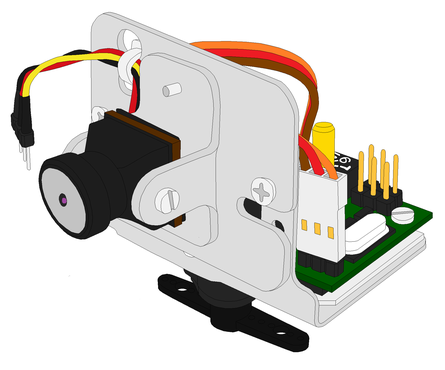

Technical specifications of the camera holder

  • 1/3" CMOS sensor, wide angle:                                                                                                                                           The used camera has a 1/3" CMOS sensor which ensures in combination with the leise for a high wide angle of 150° to guarantee a good overview "in the model".
  • Resolution 1200TVL:                                                                                                                                                            The number of 1200 horizontal television lines (TVL) ensures a high resolution for an analog video signal.
  • Active corner view:                                                                                                                                        A mounted servo turns the camera holder parallel with the steering for a better corner drive.
  • Adjustable trim and amplification:                                                                                                             It's possible to set the trim (alignment) for the servo as well as the amplification (steering angle) independently to the steering servo of the model.
  • Slow reaction:                                                                                                                                               The servo of the camera holder reacts a bit slower than the servo of the steering to compensate quick changes of the steering direction for example if the model is skidding.
  • Height adjustable camera:                                                                                                                               It's able to mount the camera in 3 different highs suitable to the model.
  • Looping the signal of the steering servo:                                                                                                                       It's possible to connect the steering channel1 directly on the camera holder. The signal is looped trough so you can connect the steering servo on it without using another channel.

          Operating voltage: 5V - 6V, depends on the BEC voltage
          Video format: PAL
          Length: 53mm with camera
          Width: 50mm
          Hight: 47mm lowest step, 61mm highest step
          Weight: 40g
